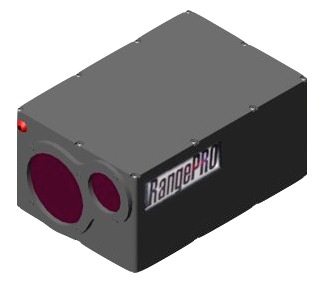

RangePRO L5LUH Laser Rangefinder Module
L5LUH: Laser rangefinder 5to 10km range class Low profile Universal Housed
Dimensions
| Length | 138mm |
| Width | 94mm |
| Height | 66mm |
| Mass | 1.01kg |
Suitability
- OEM module for integration into sensing, surveillance, tracking & weapons stations, and thermal imaging cameras & gimbals;
- for land, sea or airborne applications;
- designed to withstand vibration, shock, and extended temperature operation, EM shielded.
Rangefinding
Read-out limits (factory selectable)
| Minimum | 50 |
| Maximum | 20,000 |
Performance*
| vehicle (2.3×2.3m)** | > 6,500 |
| building (8x8m)** | > 10,000 |
*Standard Clear atmosphere; Extinction Coefficient 0.097 @ 1,570nm (RCA Handbook.); sea level visibility = 23.5km.
** Target albedo = 0.5 @ 1,570nm.
Sealing
- Hermetic
Laser Safety
- Class 1 eyesafe***
***AS/NZS IEC60825.1 2011.
Transmitter
| Laser type | Nd:YAG/OPO |
| Wavelength | 1,565 to 1,575 nm (1,570 nominal) |
| Output | < 8mJ |
| Ranging rate | single shot (12/minute) |
Detector
- InGaAs with time variant gain
Range Determination
- Signals from the detector are digitally sampled and examined to determine all
potential real target returns. An adaptive range threshold compensates for changing
noise levels, maximising system capability under varying conditions.
Power
- 10 to 32Vdc input
Comms
- RS-422 19,200 Baud
Mounting
- 3-point mount.
